Key Points
- The brake master cylinder converts brake pedal force into hydraulic pressure to stop your car.
- Common signs of a bad master cylinder include a spongy pedal, sinking pedal, or brake fluid leaks.
- You can test it using simple methods like visual inspection, brake pedal test, and brake line test.
- Always prioritize safety and consult a mechanic if unsure about the results or repairs.
Why Test Your Brake Master Cylinder?
Your car’s brakes are vital for safety, and the brake master cylinder is the heart of this system. It transforms the force you apply to the brake pedal into hydraulic pressure that activates the brakes. If it fails, you might face longer stopping distances or complete brake failure, which can be dangerous. Testing the master cylinder helps catch issues early, ensuring your vehicle remains safe to drive.
Common Symptoms to Watch For
Before testing, look for signs that your brake master cylinder might be failing. These include a soft or spongy brake pedal, a pedal that sinks to the floor, visible brake fluid leaks, a brake warning light on the dashboard, or difficulty stopping the car. If you notice any of these, it’s time to test the master cylinder to confirm the issue.
How to Test It
You can test your brake master cylinder using three straightforward methods: a visual inspection, a brake pedal test, and a brake line test. These require minimal tools and can be done at home, though you should always prioritize safety and seek professional help if needed.
What to Do Next
If tests show the master cylinder is bad, it likely needs replacement. This is a complex task, so consider consulting a mechanic unless you’re experienced with brake repairs. Regular maintenance, like checking brake fluid levels, can prevent issues and keep your brakes reliable.
Comprehensive Guide to Testing Your Brake Master Cylinder
Your vehicle’s braking system is its most critical safety feature. Without reliable brakes, even the most advanced cars become hazardous. At the core of this system is the brake master cylinder, which converts the force from your foot on the brake pedal into hydraulic pressure that stops your car. Over time, wear or faults can compromise its performance, leading to reduced braking power or complete failure. Knowing how to test your brake master cylinder is essential for maintaining vehicle safety.
This guide provides a detailed, step-by-step approach to testing your brake master cylinder. We’ll explore the signs of a failing master cylinder, the tools you need, three primary testing methods, and how to interpret the results. By following these steps, you can diagnose issues early and take action to keep your brakes in top shape. Let’s dive in.
Understanding the Brake Master Cylinder
The brake master cylinder is a small but vital component located in your vehicle’s engine bay, typically near the firewall on the driver’s side. It houses a reservoir filled with brake fluid and contains pistons that generate hydraulic pressure when you press the brake pedal. This pressure travels through brake lines to the calipers or wheel cylinders, which then press brake pads or shoes against the rotors or drums to stop the car.
A failing master cylinder can disrupt this process, leading to symptoms like a spongy pedal or leaks. Regular testing helps catch these issues before they escalate, ensuring your vehicle remains safe to drive.
Signs of a Bad Brake Master Cylinder
Before testing, it’s helpful to recognize the symptoms of a failing brake master cylinder. These signs can alert you to potential issues, prompting you to perform diagnostic tests. Here are the most common indicators:
- Spongy or Soft Brake Pedal: A pedal that feels soft or mushy when pressed often indicates air in the brake lines or a leak, possibly from the master cylinder. This reduces the hydraulic pressure needed for effective braking.
- Brake Pedal Sinks to the Floor: If the pedal slowly sinks under steady pressure, it suggests an internal leak in the master cylinder, allowing fluid to bypass the seals.
- Leaking Brake Fluid: Visible fluid around the master cylinder or puddles under the car point to a leak, often due to worn seals in the cylinder.
- Brake Warning Light: Many vehicles have a dashboard light that signals braking issues, such as low fluid levels or pressure problems, which could stem from the master cylinder.
- Difficulty Stopping: If your car takes longer to stop or requires more pedal effort, the master cylinder may not be generating enough pressure.
If you notice any of these symptoms, it’s time to test your brake master cylinder to confirm whether it’s the culprit.
Tools Needed for Testing
Testing your brake master cylinder requires minimal tools, making it accessible for DIY enthusiasts. Gather these items before starting:
- Brake Line Clamps or Vise Grips: Used to clamp brake hoses during the brake line test. Available at auto parts stores like Advance Auto Parts.
- Flashlight: Helps inspect for leaks and check fluid levels in tight spaces.
- Rags or Paper Towels: For cleaning up spilled brake fluid, which is corrosive.
- Safety Glasses: Protects your eyes when working with brake fluid or under the vehicle.
- Optional Brake Fluid Tester: Checks the quality of brake fluid for contamination.
Having a helper can simplify some steps, but you can manage solo with care. Ensure your workspace is well-lit and the vehicle is parked on a flat surface.
Step-by-Step Testing Procedures
You can test your brake master cylinder using three reliable methods: visual inspection, brake pedal test, and brake line test. Each method targets different aspects of the cylinder’s performance, helping you pinpoint issues accurately.
Visual Inspection
This test checks for external signs of trouble, such as leaks or fluid issues.

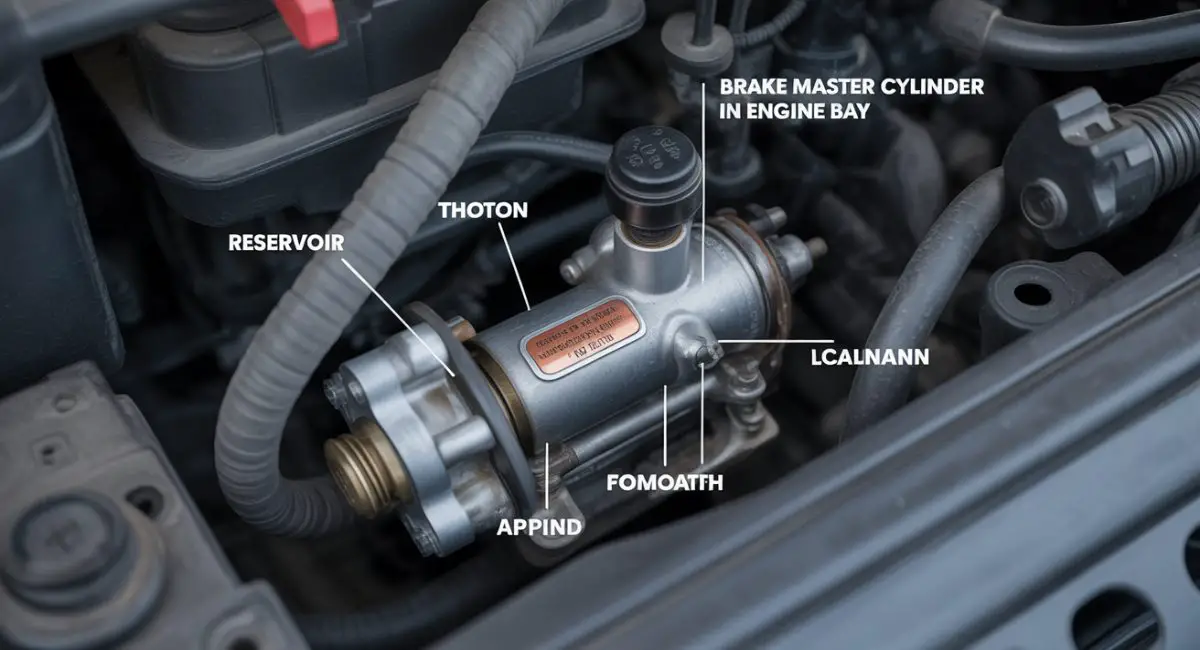

- Locate the Master Cylinder: Open the hood and find the brake master cylinder, typically on the driver’s side near the firewall. It has a reservoir on top filled with brake fluid.
- Check for Leaks: Inspect around the cylinder, seals, and connections for wet spots or brake fluid residue. Look under the car for puddles, which could indicate a leak.
- Inspect Fluid Level: Check the reservoir’s fluid level, which should be between the “min” and “max” marks. Low fluid suggests a leak somewhere in the system.
- Examine Fluid Condition: The brake fluid should be clear or slightly yellow. Dark, dirty, or debris-filled fluid may indicate wear in the master cylinder or the need for a fluid flush.

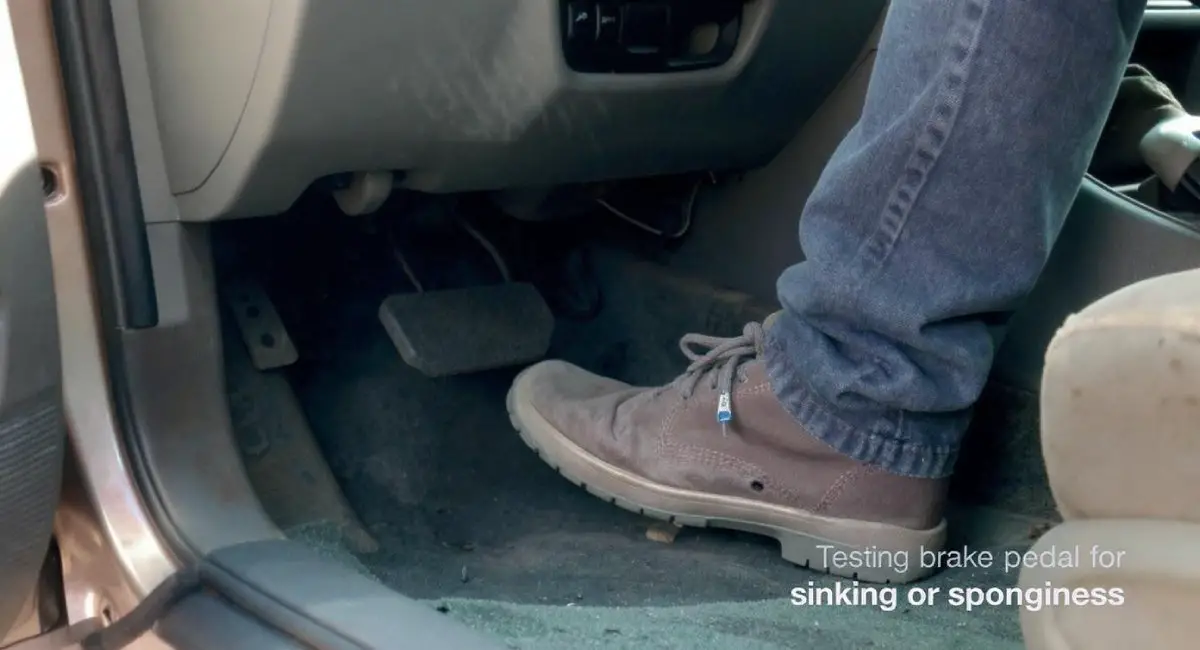

Brake Pedal Test
This test evaluates the master cylinder’s ability to hold pressure.
- Prepare the Vehicle: Park on a flat surface with the engine off.
- Deplete Vacuum Assistance: Pump the brake pedal several times until it feels firm, indicating the vacuum booster is depleted.
- Hold the Pedal: Press the pedal firmly and hold it for 30 seconds.
- Observe Pedal Behavior: If the pedal slowly sinks to the floor, it suggests an internal leak in the master cylinder.
- Start the Engine: With your foot still on the pedal, start the engine. The pedal should drop slightly as the vacuum booster activates. If it drops to the floor or doesn’t move, there may be an issue with the master cylinder or booster. If it drops to the floor, bleed the brakes first to rule out air in the lines.
Brake Line Test
This test isolates whether the issue lies with the master cylinder or other brake components.
- Ensure Reservoir is Full: Check that the master cylinder reservoir is filled with the correct brake fluid (e.g., DOT3 or DOT4, as specified in your owner’s manual).
- Clamp Brake Hoses: Use brake line clamps or vise grips to carefully clamp each brake hose at the wheels. Avoid over-tightening to prevent hose damage.
- Test the Pedal: With all hoses clamped, press the brake pedal. It should feel firm and not sink.
- Interpret Results:
- If the pedal sinks with all hoses clamped, the master cylinder is likely faulty.
- If the pedal is firm, remove one clamp at a time and test again. A sinking pedal after removing a specific clamp suggests a leak in that brake line or component.
Interpreting Test Results
Each test provides clues about the master cylinder’s condition. Here’s how to interpret the results:
| Test | Result | Indication |
|---|---|---|
| Visual Inspection | Leaks or puddles | Likely a failing seal in the master cylinder or connected lines. |
| Low fluid level | Possible leak in the system; monitor after topping up. | |
| Dirty or contaminated fluid | Indicates wear or need for a fluid flush; may affect master cylinder function. | |
| Brake Pedal Test | Pedal sinks with engine off | Suggests internal leak in the master cylinder. |
| Pedal drops to floor after engine start | Indicates air in lines or a bad master cylinder; bleed brakes first. | |
| Pedal doesn’t drop with engine start | Possible issue with brake booster or check valve. | |
| Brake Line Test | Pedal sinks with all hoses clamped | Master cylinder is likely bad and needs replacement. |
| Pedal sinks only when a clamp is removed | Issue lies in the corresponding brake line or component, not the master cylinder. |
If tests confirm a faulty master cylinder, replacement is necessary. This involves removing the old cylinder, installing a new one, and bleeding the brake system, which can be complex. Unless you’re experienced, consult a professional mechanic.
Safety Precautions
When testing your brake master cylinder, keep these safety tips in mind:
- Work on a Stable Surface: Ensure the vehicle is parked on a flat surface with the parking brake engaged.
- Wear Protective Gear: Use safety glasses and gloves, as brake fluid is corrosive and can harm skin or eyes.
- Handle Brake Fluid Carefully: Clean up spills immediately and avoid contaminating the reservoir with dirt or water.
- Don’t Drive with Suspected Issues: If tests suggest a problem, avoid driving until repairs are made to prevent accidents.
What to Do If the Master Cylinder Is Bad
If your tests indicate a faulty master cylinder, replacement is typically required. This involves:
- Purchasing a Replacement: Buy a master cylinder compatible with your vehicle. Check your owner’s manual or consult an auto parts store.
- Removing the Old Cylinder: Disconnect brake lines, unbolt the cylinder, and remove it carefully.
- Installing the New Cylinder: Secure the new cylinder, reconnect lines, and fill the reservoir with the correct brake fluid.
- Bleeding the Brakes: Remove air from the brake lines to restore proper function.
This process requires precision, so if you’re not confident, seek professional help. A qualified mechanic can ensure the job is done correctly, maintaining your vehicle’s safety.
Frequently Asked Questions
Can I drive with a bad brake master cylinder?
No, driving with a faulty master cylinder is dangerous. It can lead to reduced braking power or complete failure, increasing the risk of accidents. Test and repair it immediately.
How often should I test my brake master cylinder?
Test it whenever you notice symptoms like a spongy pedal or warning light. As part of regular maintenance, check brake fluid levels every 6 months and inspect the system annually.
Can air in the brake lines mimic a bad master cylinder?
Yes, air in the lines can cause a spongy pedal, similar to a failing master cylinder. Bleed the brakes first to rule out air before concluding the cylinder is bad.
How much does it cost to replace a brake master cylinder?
Replacement costs vary, typically ranging from $200 to $500, including parts and labor, depending on the vehicle and location. DIY replacement can save on labor but requires skill.
Conclusion
Testing your brake master cylinder is a vital part of vehicle maintenance that can prevent serious safety issues. By recognizing signs like a spongy pedal, sinking pedal, or fluid leaks, and performing tests like visual inspection, brake pedal test, and brake line test, you can diagnose problems early. If the master cylinder is faulty, replace it promptly to ensure your brakes function reliably.
Regular maintenance, such as checking brake fluid levels and inspecting the system, can extend the life of your braking components. If you’re unsure about any step or the results, consult a professional mechanic to keep your vehicle safe. Stay proactive, and drive with confidence knowing your brakes are in top shape.
